Question: Many receivers giving problem in antenna power. It will turn off when press exit after power on at OSD menu.
What should I do?

Many customers are giving feedback with a similar issue. "antenna power is off and unable to turn on.

Through remote control can turn on but it will go off when pressing the exit menu.  Need to pay attention

Answer: Engineer guesses that the problem is from the rf antenna protect IC has a problem,  (amperage limited is smaller, it is better to change bigger amperage ic).

This protects IC function is protect the TV Board if the antenna has a problem (for example shorted) AN_SY6280 from http://www.silergy.com/ .

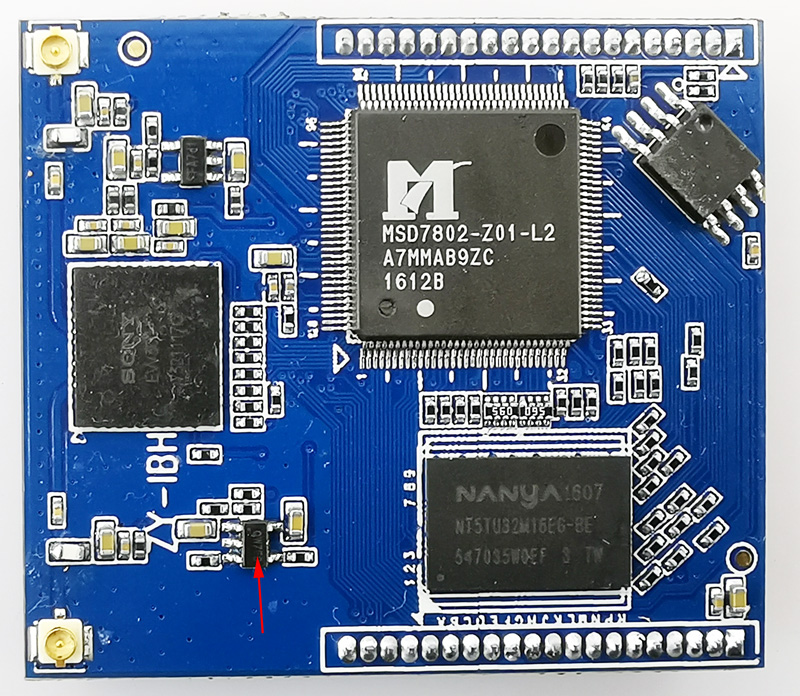

The red arrow is the power IC you should change.

This problem is only for below model

https://vcan.cc/v/p/car-dvb-t2-dvb-t/

Description

Car dvb-t2 TV tuner diversity digital receiver set top box + Antenna, support multi PLP

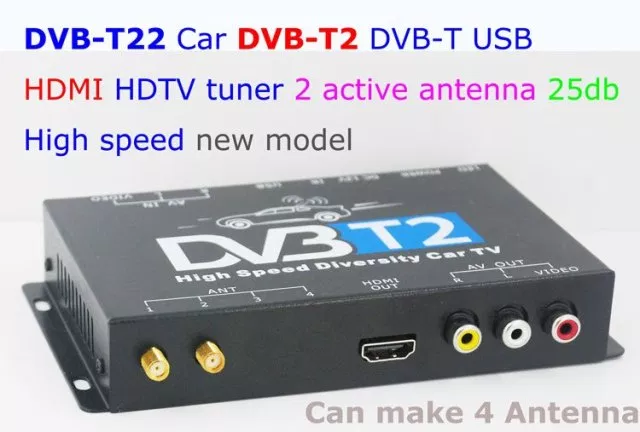

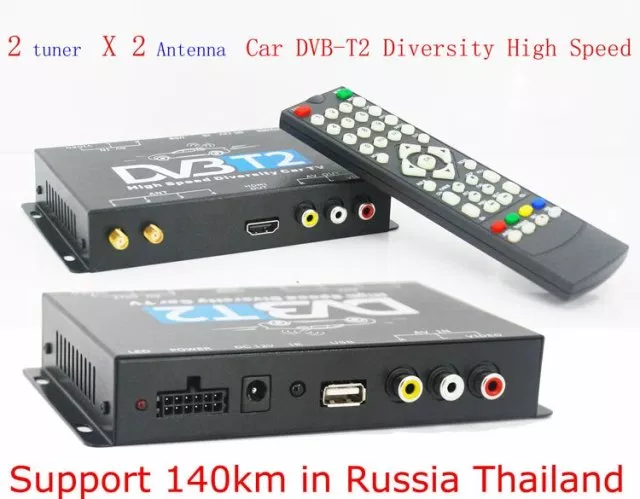

DVB-T221 Car DVB-T2 tv receiver USB HDMI HDTV 2 Antenna Japan Tuners High Speed

Contents [hide]

• 1 Selling Points
• 2 Features
• 3 FAQ
• 4 Specification
• 5 Technology Data
• 6 Accessory
• 7 Tested Country
• 8 Related

Selling Points

Car DVB-T2 tv receiver box;
Japan tuner, designed for car
Support DVB-T / DVB-T2 both;
Support MPEG2 / MPEG4 both;
Two active antenna 25db;
Support Multi PLP, no missing channel ;

Features

1. Now Support DVB-T / DVB-T2 + High Speed.

(Now DVB-T, future updated DVB-T2, once buy, save money.)

1. Support Multi PLP, say goodbye to missing channel




2. Support H.264/AVC, MPEG2~MPEG4 HD Video Decode;

3. Available to upgrade the firmware via USB slot;

4. USB Recorder, PVR, multimedia play, support HDD;

5. Auto searching and updating bit rate information;

6. Storage for 2000pcs channels;

7. Memory function after power off;

8. Support OSD TELETEXT;

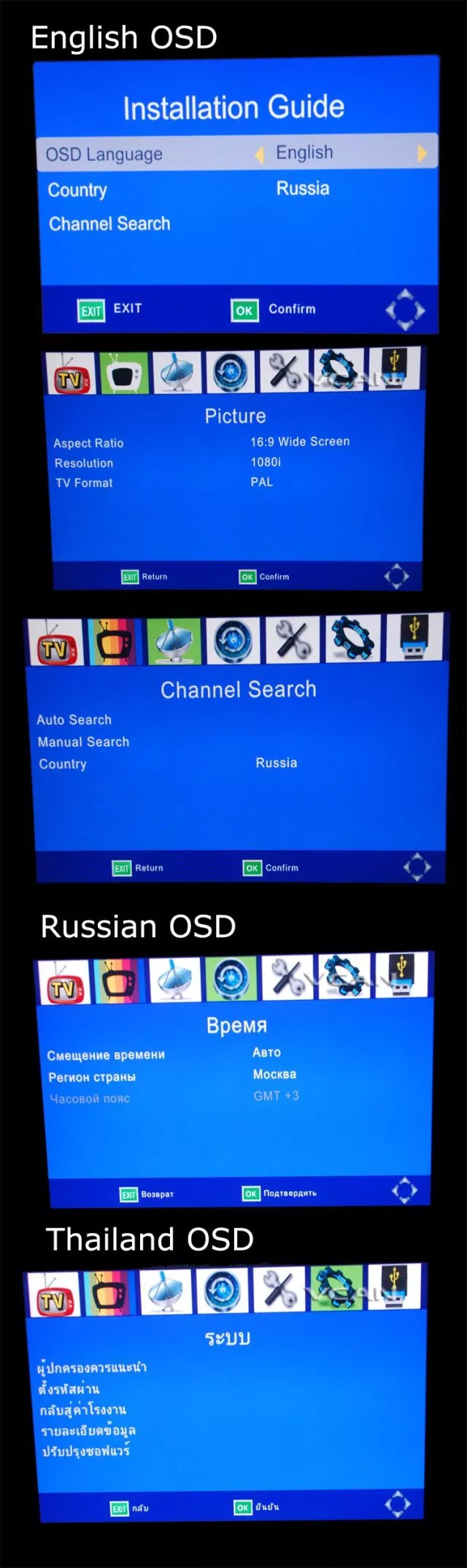

9. Multi Language Support: English, Russian,Thai, Spanish etc.

10. EPG program guide and PIG(Picture in Graphics )Function;

11. 6MHz, 7MHz, 8MHz Band-wide;

12. HDMI output (One route);

13. 2x Video output, Stereo Audio-R, Audio-L output;

14. Support IR output and extended remote sensor receiver;

15. Google DVB-T221 to get perfect technology support and update software.

16. Support AUX AV input.

17. Tuner support power for active amplified antenna;

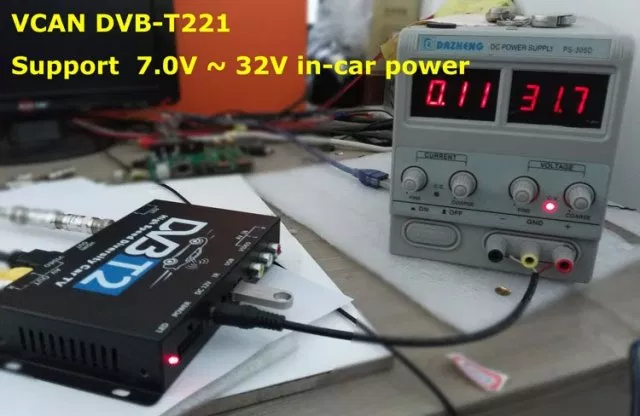

18. 10~32V widely power supply, special designed for car or bus.

19. Smart module design, can be built-in at your dvd / gps player.

20. Touch screen operation is optional. (Need debug with your DVD player)

21. Power DC jack, one cigarette lighter to connect easily;

FAQ

Car dvb-t2 TV tuner diversity digital receiver set top box + Antenna, support multi PLP

Specification

1. Input frequency: VHF 177.5MHz – 226.5MHz UHF 474MHz – 858MHz




2. Modulate: QPSK/16 – QAM/256-QAM

3. Decode standard: MPEG4,MP@ML,MP@HL,H.264/AVC

4. Audio decode standard: MPEG-1, and-2,layer and 2, MPEG-4, HE-AAC

5. Two ways CVBS RCA + One HD output:

6. Power Supply: DC 12V~26V 5W

7. Connecting Terminal:

Active amplifier antenna input jack (3.3V supply), Car power input jack , R/L Audio CVBS Video output jack,

External remote control IR cord, USB upgrade socket, HD High-definition output jack.

1. Applicable Power Supply: Car storage battery (12V~ 24V)




2. Outer dimension: 125mm x 85mm x 26mm

3. Application Temperature: -5 ~40 degree

4. Storage Temperature: -20~60 degree

Technology Data

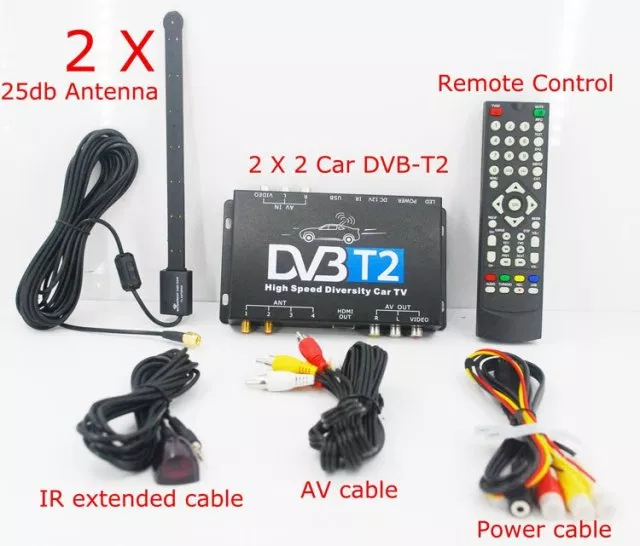

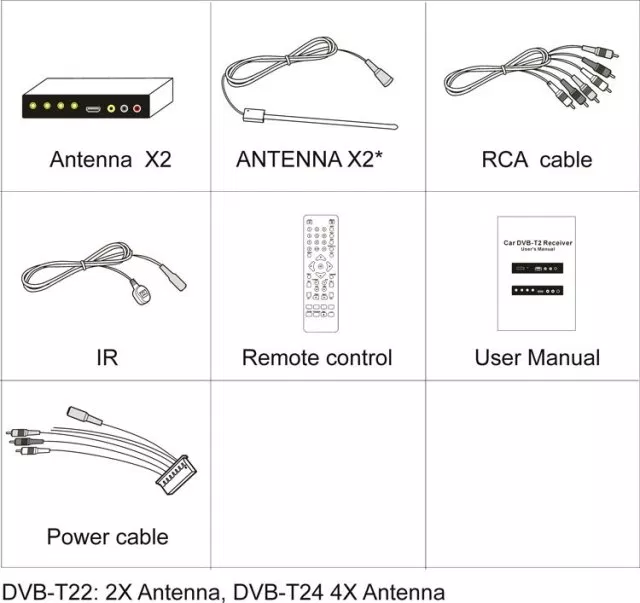

Accessory

1 X Car DVB-T2 receiver

2 X 25DB car amplifier digital DVB-T2 Antenna

1 X power / ir / av cable

1 X Remote Control Unit

1 X Extended IR Cable

1 X Audio Video output cable

1 X Users manual

Tested Country

Malaysia

Greece

Kenya
