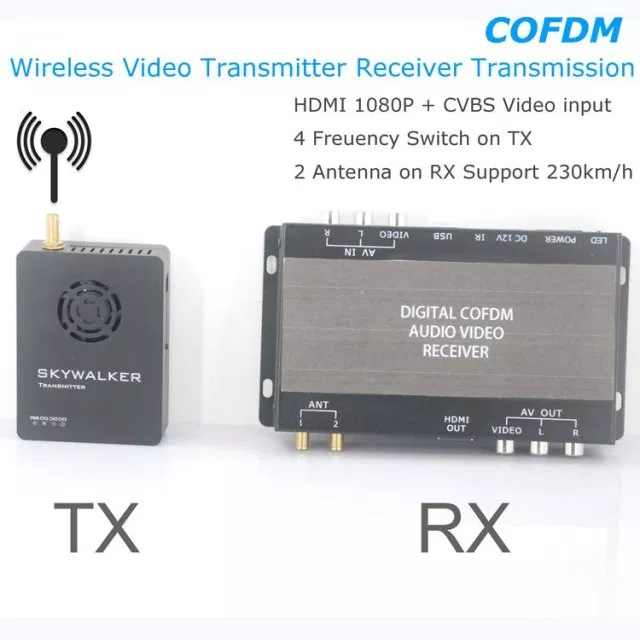

Wireless Video Transmitter Receiver
COFDM Wireless Video Transmitter Receiver Transmission HDMI HD 1080P composite CVBS in H.264 COFDM-904T
Contents [hide]
Selling Points
0.5～1W RF output;
HD 1080P, SD 720P composite CVBS in
H.264/MPEG-2;
Delay <500 Millisecond;
Test Video
10Km test video from Drone Transmitter to Ground receiver. please check below link:
https://www.dropbox.com/s/rgmsnpnsrygc8fu/COFDM-904T-10Km-test-video.mts

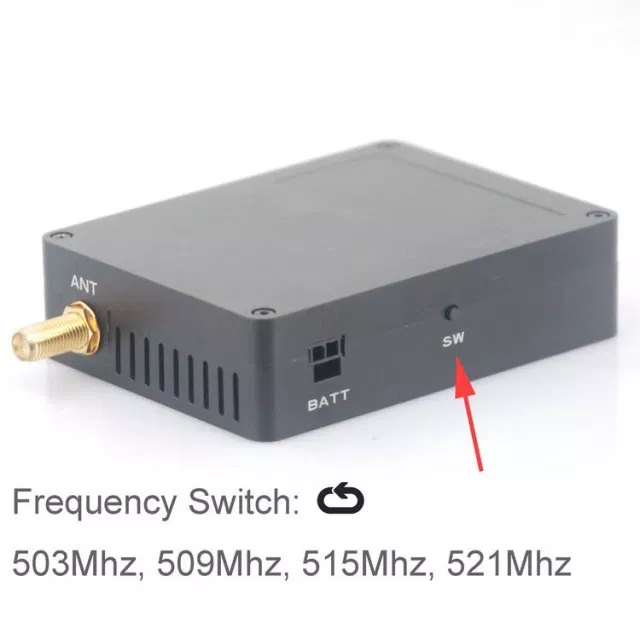

How to change frequency at receiver, please check below picture:
Specification
| Product name | High-definition map transmission transmitter |
| Product number | COFDM-904T |
| Working frequency | 300MHz ~ 900MHz can be customized |
| Antenna interface | 50Ω SMA male or MMCX female |
| Modulation mode | COFDM （QPSK、16QAM、64QAM） |
| Video bit rate | 2~10MHz |
| Working bandwidth | 6MHz，8MHz |
| Delay | 300 Millisecond |
| Compression format | H．264 |
| Image clarity | 1080P @60/50/30(backward compatible) |
| Operating Voltage | DC9 ~ 28V |
| Power consumption | ≤8W @ standard power 500mW |
| weight | ≤100g |
| Product Size | 80 * 65 * 20mm |
FAQ
| Question: Can you send me price list? |
| Answer: Yes, please send your email inquiry to info@cofdm.com.cn |
| Question: Any chance to change to 2 or 5 Ghz band? |
| Answer: Now our Transmitter frequency supports from 170~1500Mhz. |

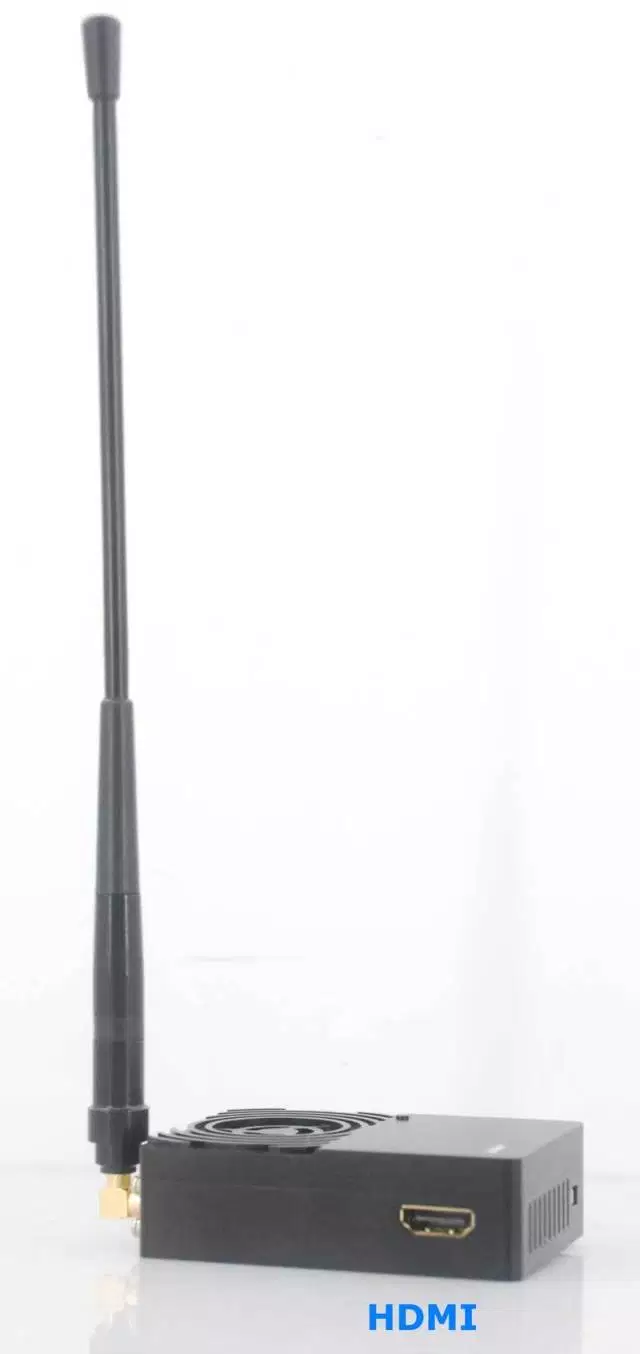

| Question: COFDM-904T has HDMI input? |
| Answer: Yes, COFDM-904T has HDMI and CVBS input. It support Gopro camera. |
| Question: COFDM-904T is only 4 Channels? |
| Answer: COFDM-904T default has 4 frequency, if you need different or more, we will edit our software to do (170~900Mhz), Just send us your requirement details to info@cofdm.com.cn |
| Question: What about data rate? Support 8M-10Mbps? |
| Answer: Default is 3M, we also can support 8-10Mbps if adjust parameter. |
| Question: Can i set manually by me? |
| Answer: It is better to pre-set in factory and test passed before delivery. If need, we can also tell you the solution to change frequency. |
| Question: I need COFDM-904T work on 1080i 50 at least at 8-10Mbps |
| Answer: It is no problem. |
| Question: Can i set manually all the parameters by myself? |
| Answer: If you add PA (booster), then you can not; If you don’t need PA (booster), then you can (PA is hardware, if you change setting, hardware should be adjustable) |
| Question: Which is the max frequency value we can set? |
| Answer: 900Mhz, Need higher, please choose COFDM-902T |
| Question: If the band range is 300-900 i will tell you exactly 4 ones in between to set for me, then i will need constant data rate at 10 Mbps, modulation at 16QAM, FEC at 1/2 and Guard Interval at 1/32. Encoding at 4.2.2 if possible instead of 4.2.0, 200 Meters (NLOS) Non Line Of Sight and 500 Meters (LOS) Line Of Sight. RF power at 500 mW, remember, data rate MUST be fixed (not variable) at 10 Mbps, try this setting and let me know how it works (better if you can forward me a short video directly recorded from the HDMI output of the receiver – NOT SHOOTING A MONITOR SCREEN! At least we need 27dbm |
| Answer: OK, we can do above sample if you confirmed. |
| Question: Do you have any device, I can get video at my computer? |
| Answer: Yes, please check another page. COFDM Video USB Receiver. |
Do you have any question, please click here to ask a question.
